Event lighting: 3D effects and power with MagicBlade FX

Now, among Novelty Spain’s AV lighting equipment, you can discover new possibilities in AV technical production with the MagicBlade-FX, the evolution of the popular MagicBlade R from Ayrton.

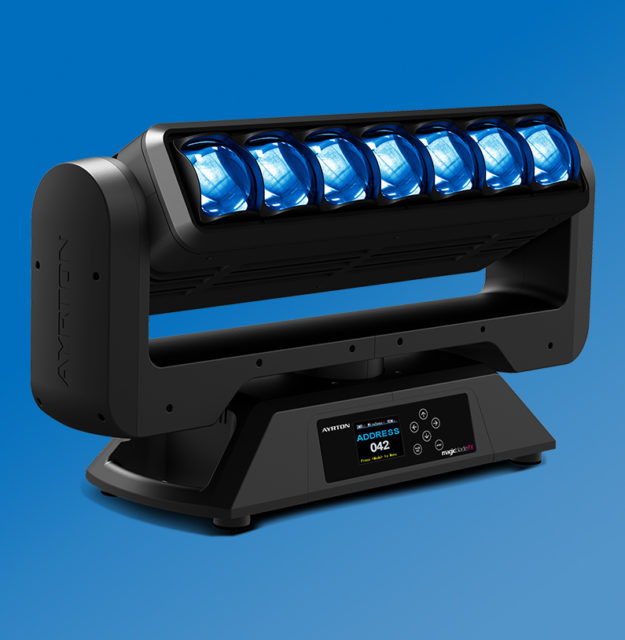

Beautifully designed, the MagicBlade FX has new features that allow you to project intense beams to create stunning 3D volumetric effects that capture attention and transform the event venue.

In addition, MagicBlade FX incorporates seven state-of-the-art RGBW LEDs that can be individually controlled to create virtual aerial scenery, illuminate sets and performers and customise the lighting for every corner of the event.

This equipment adapts to your creative and technical needs with precision and power. Download the full technical specifications here.

Technical specifications

Optics

• 2-elements 15:1 zoom high-resolution optic system
• Beam aperture: 3.6° to 53°
• Fast motorised linear zoom
• 7 squared 65 mm frontal lens

Light source

• 7 x 1,000 lumens RGBW High-Power LED source
• Total luminaire output: up to 4,200 lumens
• Luminous intensity: 579,600 cd (narrow beam)
• Rated life (L70): up to 40,000 hours
• Flicker free sources management, suitable for TV applications and all video recorded events

Movement

• Extremely accurate positioning
• Moving-head operated via either 8- or 16-bit resolution
• High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.
• Pan and tilt automatic repositioning
• Moving-head range: infinite pan and tilt rotation

Colours

• Sophisticated 4 colours RGBW mixed, reaching high Colour Rendering Index
• Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues
• 4.29 billion colours (8 bit resolution)
• Virtual colour wheel, including most usuals white colour temperature presets
• Dynamic colour macro effect with variable speed

Effects

• 2D & 3D graphical effects capabilities
• Effects can be coupled with beam, wash or matrix applications
• Built-in pattern effects with speed and fade controls for scenic applications

Dimmer/strobe

• Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
• White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second

Control

• DMX 512 protocol, through DMX cable or wireless system
• DMX-RDM compatible
• Stand-alone mode and Master/Slave modes
• ArtNet™ & sACN protocol through Ethernet cable

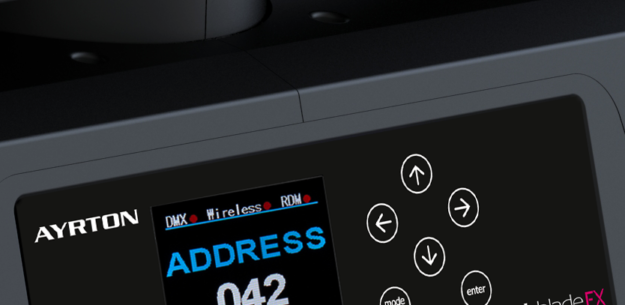

• Local control panel, with LCD display
• Choice of 3 DMX modes (from 19 to 46 DMX channels)

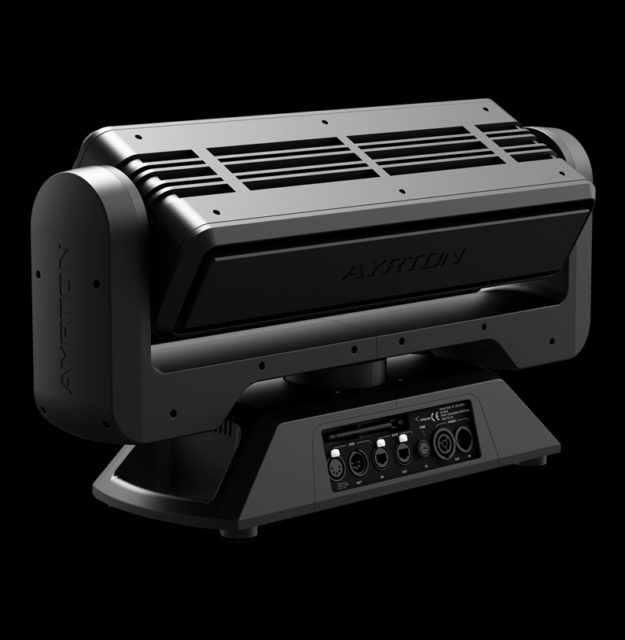

Housing

• Moving-head skeleton made of aluminium and steel metal plates
• Heatsinks in aluminium
• Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
• Two sides handles for transportation
• Four heavy-duty feet for better stability
• IP20 protection rating
• Exterior finish: black (Carbon)

Source: Ayrton
